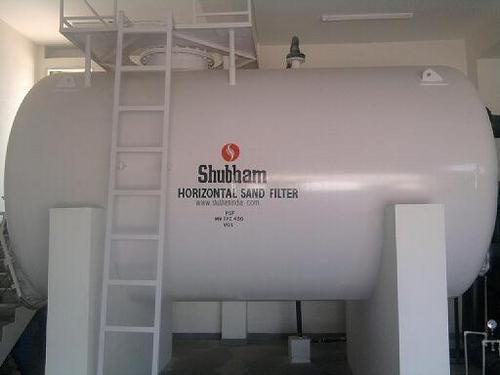

Horizontal Sand Filter

Horizontal Sand Filter
Horizontal Sand Filter
Product Code : HSF
Brand Name : Shbham Filter
Product Description
Our expertise in this domain made us capable enough to manufacture, export and supply optimum quality Horizontal Sand Filter that is used for water filtration, turbidity removal and TSS removal. It is normally designed for high flow rate and are especially well suited for the high volume flows that is required by large municipalities, industries, and power utilities. We provide different types of Horizontal Sand Filter that is used for industrial and potable water supply. The filter are being used in advanced waste water treatment plant and other industries. Our multi-cell designs partition the unit to form individual filter cells.


  • The filters are economically fabricated using optimum design parameters in accordance with ASME or BS standards.

  • Slow and rapid filter rate is being implemented depending on the application.

  • Filters are fully shop assembled and skid mounted.

  • Filters operation can be automatic and manual.

  • Horizontal filters are designed using capacity up to 400m3/hr.

  • Air scouring is an option used depending on type of media and raw water and filter application.

Product Known as Horizonal Sand Filter, Sand Filter, Horizontal Pressure Filter, High Flow Sand Filter, Large Flow Sand Filter,

Sample Availability



Supplier Product Code



Main Markets/Key Customers


INDIA / UAE / Oil & Refineries, Textile, Power Plant, Pharmaceuticals, Automobiles, Paper Mills

Delivery Lead Times


8 - 10 Weeks

Payment Terms


100 % Against LC

Quality Process Certifications
